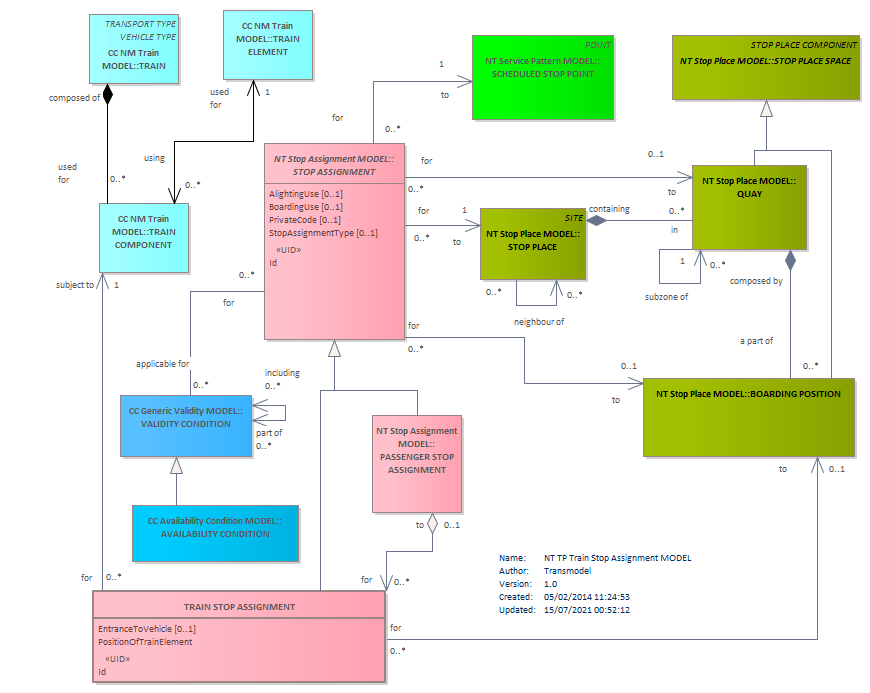

NT TP Train Stop Assignment MODEL : Class diagram
| Created: | 05/02/2014 11:24:53 |
| Modified: | 15/07/2021 00:52:12 |
 Project: |
|
| Advanced: |
<b>Diagram Description</b><br/><br/>The diagram <b>NeTEX- TrainStopPointAssignment</b> is an extract from Transmodel and IFOPT describing, mainly for rail transport, the relationships between physical stop points (described in IFOPT) and TrainComponents (Transmodel).<br/><br/>__________________________________________________________________________<br/><b>Modification History</b><br/><br/><i>rev KB 04/03/09 cardinalities corrected according to IFOPT</i><br/><i>rev KB June 2009 : extracted from IFOPT-TM Train Assignment</i><br/><i>rev KB June 2009: part concerning the dynamic assignment removed to a separate package</i><br/>
