NT TP All Journey Patterns MODEL : Class diagram
| Created: | 05/02/2014 11:24:53 |
| Modified: | 10/05/2021 11:50:35 |
 Project: |
|
| Advanced: |

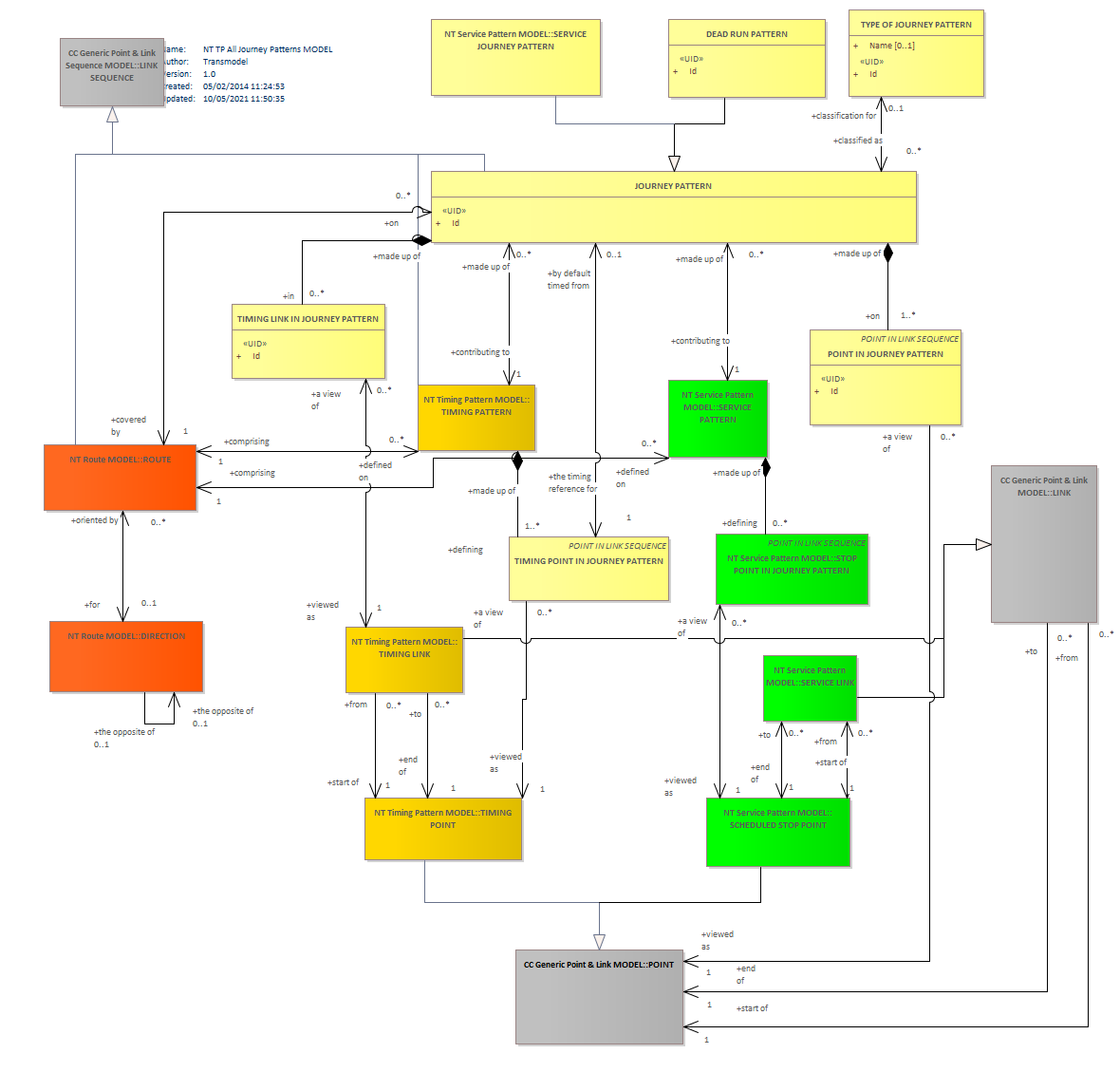

<b>Diagram Description</b><br/><br/>The diagram <b>NeTEx - JourneyPatterns</b> is a direct extract from Transmodel describing the topological concepts related to the services (work of the vehicles).<br/><br/><ol>
<li>TimingPoints and TimingLinks are topological concepts where timing information may be recored (yellow): they are not timing information themselves</li><li>Service patterns (green) describe topology as "seen" by the customers.</li></ol>
<br/><br/><br/>__________________________________________________________________________<br/><b>Modification History</b><br/><br/>rev KB 5/02/09 : added specialization of POINT as TIMING POINT; added POINT ON LINK<br/>rev KB 4/03/09: layout enhanced<br/>rev KB June 2009: modularized, extracted from PT Topology<br/>
<li>TimingPoints and TimingLinks are topological concepts where timing information may be recored (yellow): they are not timing information themselves</li><li>Service patterns (green) describe topology as "seen" by the customers.</li></ol>
<br/><br/><br/>__________________________________________________________________________<br/><b>Modification History</b><br/><br/>rev KB 5/02/09 : added specialization of POINT as TIMING POINT; added POINT ON LINK<br/>rev KB 4/03/09: layout enhanced<br/>rev KB June 2009: modularized, extracted from PT Topology<br/>
